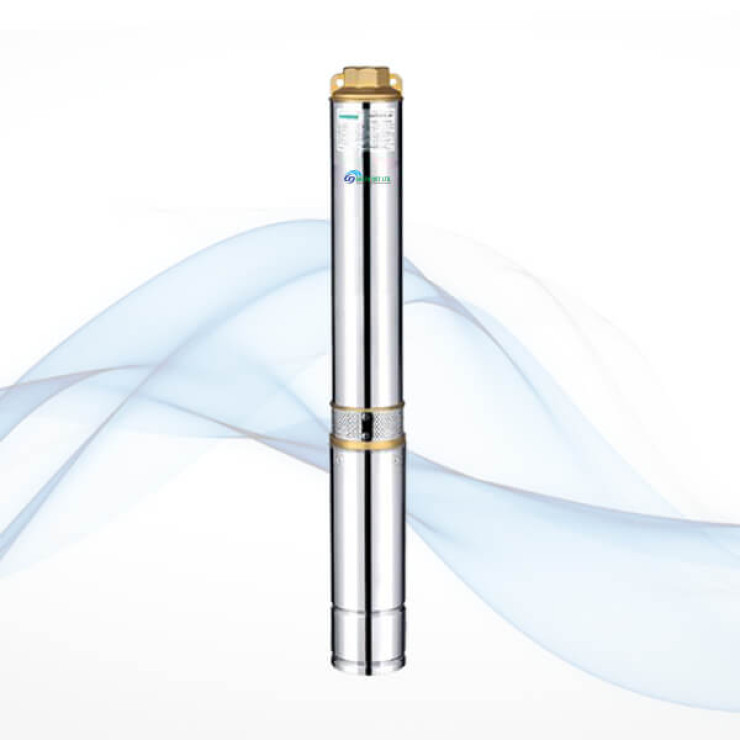

4SG(m) 4" Deep Well Pump

Key Features

Maximum Flow	:	22 m3/h (cubic meters per hour)
Maximum Head	:	454 m (meters)
Maximum Ambient Temperature	:	Below 40℃
Sand Content (in mass fraction)	:	Up to 0.01%
Hydrogen Sulfide Content	:	Up to 1.5 mg/L
Chloride Ion Content:	:	Up to 400 mg/L
pH Range	:	6.5 to 8.5
Maximum Depth	:	70 m below the static water table
View More Info

Get Quote

Category:

Performance Range:

Max. Flow: 22m3/h
Max. Head: 454m

Application:

Application Limits

Max. ambient temperature < 40℃;
Sand content(in mass fraction)up to 0.01%;
Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
pH 6.5 to 8.5;
Maximum: 70m below the static water table.

Application Fields

Building/construction work/domestic water supply;
Irrigation and small water work;
Landscaping;
Water conservancy system;
Factory.

Features:

Edible oil filled motor, stable& reliable running with pressure regulating membrane;
Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector;
Available with cable with a motor plug, disassemble conveniently;
Available with pump casing with plug, 2~8 m³/hrs series with single stage floating impellers, 10~16m3/hrs series with integrated stage floating impellers;
Installation in 4" or larger boreholes;

Series: 4SGm2

Model		Power		Rate current (A)		Flow													Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3
220V	380V	KW	HP	220V	380V	I/min	0	5	10	15	20	25	30	35	40	45	50	55
4SGm2/8	-	0.37	0.5	4.2	-	H(m)	58	56	55	54	52	50	46	43	38	34	27	21	Download
4SGm2/11	-	0.55	0.75	5.5	-		82	80	79	77	74	71	67	62	56	49	41	32
4SGm2/14	4SG2/14	0.75	1	7.3	2.4		102	100	99	97	93	89	84	82	70	62	51	41
4SGm2/16	4SG2/16	0.75	1	8.3	2.7		117	114	113	111	106	102	96	94	80	71	58	47
4SGm2/19	4SG2/19	1.1	1.5	9	3.1		140	137	135	133	127	122	115	107	98	86	71	57
4SGm2/22	4SG2/22	1.1	1.5	10.4	3.6		162	159	156	154	147	141	133	124	113	100	82	66
4SGm2/25	4SG2/25	1.5	2	11.9	5		184	180	178	174	169	162	152	142	128	114	96	78
4SGm2/28	4SG2/28	1.5	2	13.3	5.6		206	202	199	195	189	181	170	159	143	128	108	87
4SGm2/33	4SG2/33	2.2	3	15.6	7.4		246	241	238	233	226	216	204	191	174	153	130	106
4SGm2/38	4SG2/38	2.2	3	18	8.5		283	278	274	268	260	249	235	220	200	176	150	122
-	4SG2/44	3	4	-	9.2		320	317	311	304	295	284	269	250	225	198	165	132
-	4SG2/50	3	4	-	10.5		364	360	353	345	335	323	306	284	256	225	188	150
-	4SG2/55	4	5.5	-	11.5		410	403	396	386	376	361	342	318	289	252	206	165
-	4SG2/62	4	5.5	-	12.7		454	446	438	427	416	400	379	352	320	279	228	183

Series: 4SGm3

Model		Power		Rate current (A)		Flow										Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
220V	380V	KW	HP	220V	380V	I/min	0	10	20	30	40	50	60	70	80
4SGm3/7	-	0.37	0.5	4.2	-	H(m)	49	48	47	44	40	35	28	23	12	Download
4SGm3/9	-	0.55	0.75	5.5	-		65	64	63	60	55	48	40	30	19
4SGm3/11	4SG3/11	0.75	1	7.3	2.4		81	79	78	75	68	60	49	37	24
4SGm3/13	4SG3/13	0.75	1	8.3	2.7		96	93	92	89	80	71	58	44	28
4SGm3/15	4SG3/15	1.1	1.5	9	3.1		110	108	106	102	96	84	68	49	28
4SGm3/17	4SG3/17	1.1	1.5	10.4	3.6		125	122	120	116	109	95	77	56	32
4SGm3/19	4SG3/19	1.5	2	11.9	5		140	138	136	130	120	106	87	66	43
4SGm3/21	4SG3/21	1.5	2	13.3	5.6		155	153	150	144	133	117	96	73	48
4SGm3/26	4SG3/26	2.2	3	15.6	7.4		195	193	190	182	168	150	124	96	65
4SGm3/30	4SG3/30	2.2	3	18	8.5		225	223	219	210	194	173	143	111	75
-	4SG3/35	3	4	-	9.2		260	258	253	243	224	198	163	124	78
-	4SG3/40	3	4	-	10.5		297	295	289	278	256	226	186	142	89
-	4SG3/45	4	5.5	-	11.5		332	330	324	310	288	256	208	162	107
-	4SG3/50	4	5.5	-	12.7		369	367	360	344	320	284	231	180	114
-	4SG3/55	5.5	7.5	-	16		400	398	393	380	344	323	150	187	115
-	4SG3/60	5.5	7.5	-	17.7		436	434	429	415	387	352	273	204	125

Series: 4SGm4

Model		Power		Rate current (A)		Flow												Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
220V	380V	KW	HP	220V	380V	I/min	0	10	20	30	40	50	60	70	80	90	100
4SGm4/6	-	0.37	0.5	4.2	-	H(m)	42	40	39	37	35	32	29	24	19	12	4	Download
4SGm4/7	-	0.55	0.75	5.5	-		50	48	47	46	44	40	36	31	25	18	9
4SGm4/8	4SG4/8	0.75	1	7.3	2.4		59	57	55	53	51	47	43	37	29	21	11
4SGm4/10	4SG4/10	0.75	1	8.3	2.7		74	71	69	66	64	59	54	46	36	26	14
4SGm4/112	4SG4/12	1.1	1.5	9	3.1		89	85	83	81	77	72	65	56	45	33	18
4SGm4/14	4SG4/14	1.1	1.5	10.4	3.6		104	99	97	95	90	84	76	65	53	39	21
4SGm4/16	4SG4/16	1.5	2	11.9	5		118	113	110	107	102	95	86	75	60	45	26
4SGm4/18	4SG4/18	1.5	2	13.3	5.6		133	127	124	120	115	107	97	84	68	51	29
4SGm4/21	4SG4/21	2.2	3	15.6	7.4		156	150	146	142	136	127	116	101	82	62	35
4SGm4/24	4SG4/24	2.2	3	18	8.5		178	171	167	162	155	145	133	115	94	71	40
-	4SG4/28	3	4	-	9.2		209	203	196	190	182	170	152	130	106	77	45
-	4SG4/32	3	4	-	10.5		239	232	224	217	208	194	174	149	121	88	51
-	4SG4/36	4	5.5	-	11.5		267	257	250	243	232	216	194	167	136	98	57
-	4SG4/40	4	5.5	-	12.7		297	286	278	270	258	240	216	186	151	109	63
-	4SG4/45	5.5	7.5	-	16		328	317	308	297	286	269	242	207	165	118	67
-	4SG4/50	5.5	7.5	-	17.5		364	352	342	330	318	299	269	230	183	131	74
-	4SG4/55	7.5	10	-	18		401	388	375	363	349	328	296	250	202	145	82
-	4SG4/60	7.5	10	-	19.6		437	423	409	396	381	358	323	273	220	158	89

Series: 4SGm6

Model		Power		Rate current (A)		Flow									Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4
220V	380V	KW	HP	220V	380V	I/min	0	20	40	60	80	100	120	140
4SGm6/5	-	0.37	0.5	4.2	-	H(m)	33	31	29	27	24	22	16	10	Download
4SGm6/6	-	0.55	0.75	5.5	-		39	36	34	32	29	26	19	12
4SGm6/7	4SG6/7	0.75	1	7.3	2.4		46	42	39	37	34	30	23	14
4SGm6/8	4SG6/8	0.75	1	8.3	2.7		53	48	45	43	39	35	26	16
4SGm6/9	4SG6/9	1.1	1.5	9	3.1		59	55	51	48	44	39	29	18
4SGm6/11	4SG6/11	1.1	1.5	10.4	3.6		72	67	61	59	54	48	35	22
4SGm6/12	4SG6/12	1.5	2	11.9	5		79	74	67	64	59	52	39	24
4SGm6/14	4SG6/14	1.5	2	13.3	5.6		92	86	78	75	68	61	45	28
4SGm6/17	4SG6/17	2.2	3	15.6	7.4		113	106	98	91	83	74	55	34
4SGm6/20	4SG6/20	2.2	3	18	8.5		133	125	113	107	98	87	64	40
-	4SG6/23	3	4	-	9.2		154	142	132	123	112	100	74	46
-	4SG6/26	3	4	-	10.5		174	161	150	139	127	113	84	52
-	4SG6/30	4	5.5	-	11.5		201	185	172	160	147	130	97	60
-	4SG6/34	4	5.5	-	12.7		228	210	192	181	166	147	110	68
-	4SG6/38	5.5	7.5	-	16		247	229	220	203	186	165	133	76
-	4SG6/42	5.5	7.5	-	17.5		273	253	238	224	205	182	135	84
-	4SG6/46	7.5	10	-	18		299	280	260	245	225	199	147	92
-	4SG6/50	7.5	10	-	19.6		325	303	284	267	244	217	161	100

Series: 4SGm8

Model		Power		Rate current (A)		Flow											Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
220V	380V	KW	HP	220V	380V	I/min	0	20	40	60	80	100	120	140	160	180
4SGm8/5	-	0.55	0.75	5.5	-	H(m)	32	31	28	26	25	23	21	17	13	7	Download
4SGm8/6	4SG8/6	0.75	1	7.3	2.4		39	38	35	32	30	28	26	22	17	10
4SGm8/7	4SG8/7	0.75	1	8.3	2.7		46	44	41	37	35	33	30	26	20	12
4SGm8/8	4SG8/8	1.1	1.5	9	3.1		51	60	46	43	40	38	35	30	23	15
4SGm8/9	4SG8/9	1.1	1.5	10.4	3.6		57	56	52	48	45	43	39	34	26	17
4SGm8/10	4SG8/10	1.5	2	11.9	5		64	63	58	54	51	48	44	38	30	19
4SGm8/12	4SG8/12	1.5	2	13.3	5.6		77	76	70	65	61	58	53	46	36	23
4SGm8/15	4SG8/15	2.2	3	15.6	7.4		98	95	88	82	78	73	67	58	45	29
4SGm8/18	4SG8/18	2.2	3	18	8.5		118	114	106	98	94	88	80	70	54	35
-	4SG8/21	3	4	-	9.2		134	130	124	114	107	102	93	80	63	40
-	4SG8/24	3	4	-	10.5		153	149	142	130	122	117	106	91	72	46
-	4SG8/27	4	5.5	-	11.5		172	168	160	147	138	132	120	103	80	49
-	4SG8/30	4	5.5	-	12.7		191	187	178	163	153	147	133	114	89	54
-	4SG8/34	5.5	7.5	-	16		212	208	198	182	171	162	147	125	95	56
-	4SG8/38	5.5	7.5	-	17.5		237	232	221	203	191	181	164	140	106	62
-	4SG8/42	7.5	10	-	18		260	253	241	223	209	198	178	149	112	63
-	4SG8/46	7.5	10	-	19.6		285	277	264	244	229	217	195	163	123	69

Series: 4SGm10

Model		Power		Rate current (A)		Flow									Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	8.4
220V	380V	KW	HP	220V	380V	I/min	0	30	60	90	120	150	180	210
4SGm10/4	4SG10/4	0.75	1	7.3	2.4	H(m)	25	24	23	22	21	18	14	7	Download
4SGm10/5	4SG10/5	0.75	1	8.3	2.7		31	30	29	27	26	23	18	9
4SGm10/6	4SG10/6	1.1	1.5	9	3.1		37	36	34	33	31	28	23	13
4SGm10/7	4SG10/7	1.1	1.5	10.4	3.6		43	42	40	39	36	33	27	15
4SGm10/8	4SG10/8	1.5	2	11.9	5		50	49	46	44	42	37	30	17
4SGm10/10	4SG10/10	1.5	2	13.3	5.6		63	61	58	55	53	46	38	21
4SGm10/12	4SG10/12	2.2	3	15.6	7.4		77	76	70	66	63	55	42	22
4SGm10/14	4SG10/14	2.2	3	18	8.5		90	89	82	77	74	64	49	26
-	4SG10/16	3	4	-	9.2		100	98	91	88	84	74	59	36
-	4SG10/18	3	4	-	10.5		113	110	102	99	95	83	66	41
-	4SG10/20	4	5.5	-	11.5		124	121	114	110	106	95	76	45
-	4SG10/22	4	5.5	-	12.7		136	133	125	121	117	105	84	50
-	4SG10/25	5.5	7.5	-	16		154	150	141	136	130	116	92	55
-	4SG10/28	5.5	7.5	-	17.5		172	168	158	152	146	125	103	62
-	4SG10/31	7.5	10	-	18		188	184	174	168	160	141	110	66
-	4SG10/34	7.5	10	-	19.6		206	202	191	184	175	155	121	72

Series: 4SGm12

Model		Power		Rate current (A)		Flow											Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16.2
220V	380V	KW	HP	220V	380V	I/min	0	30	60	90	120	150	180	210	240	270
4SGm12/3	4SGm12/3	0.75	1	7.3	2.4	H(m)	19	18	17	16	15	13	11	8	6	2	Download
4SGm12/4	4SGm12/4	0.75	1	8.3	2.7		25	24	23	21	20	17	15	11	8	3
4SGm12/5	4SGm12/5	1.1	1.5	9	3.1		32	31	29	28	25	23	19	16	12	6
4SGm12/6	4SGm12/6	1.1	1.5	10.4	3.6		38	37	35	34	30	28	23	19	14	7
4SGm12/7	4SGm12/7	1.5	2	11.9	5		46	44	42	39	36	32	28	23	17	9
4SGm12/8	4SGm12/8	1.5	2	13.3	5.6		53	50	48	45	41	37	32	26	19	10
4SGm12/10	4SGm12/10	2.2	3	15.6	7.4		65	63	60	56	52	47	41	35	27	17
4SGm12/12	4SGm12/12	2.2	3	18	8.5		78	76	72	67	62	56	49	42	32	20
-	4SGm12/14	3	4	-	9.2		90	86	82	78	72	65	57	48	37	22
-	4SGm12/16	3	4	-	10.5		103	98	94	89	82	74	65	55	42	25
-	4SGm12/18	4	5.5	-	11.5		114	111	106	99	92	83	73	62	47	28
-	4SGm12/20	4	5.5	-	12.7		127	123	118	110	102	92	81	69	52	31
-	4SGm12/23	5.5	7.5	-	16		146	140	133	125	115	103	91	75	57	34
-	4SGm12/26	5.5	7.5	-	17.5		165	158	150	141	130	116	103	85	64	38
-	4SGm12/29	7.5	10	-	18		183	177	170	160	147	132	116	98	75	46
-	4SGm12/32	7.5	10	-	19.6		202	195	188	177	162	146	128	108	83	51

Series: 4SGm16

Model		Power		Rate current (A)		Flow									Performance Curve
Single-Phase	Three-Phase	KW	HP	Single Phase	Three phase	m3/h	0	3	6	9	12	15	10.8	8.4
220V	380V	KW	HP	220V	380V	I/min	0	50	100	150	200	250	300	350
4SGm16/3	4SGm16/3	1.1	1.5	9	3.1	H(m)	19	18	16	14	11	9	5	.	Download
4SGm16/4	4SGm16/4	1.1	1.5	10.4	3.6		25	24	21	19	15	12	7	.
4SGm16/5	4SGm16/5	1.5	2	11.9	5		31	29	27	24	21	17	11	2
4SGm16/6	4SGm16/6	1.5	2	13.3	5.6		37	35	32	29	25	20	13	3
4SGm16/8	4SGm16/8	2.2	3	15.6	7.4		47	45	42	37	32	26	17	4
4SGm16/9	4SGm16/9	2.2	3	18	8.5		53	51	47	42	36	29	19	5
-	4SGm16/11	3	4	-	9.2		66	64	61	55	47	40	27	7
-	4SGm16/12	3	4	-	10.5		72	70	67	60	51	44	29	8
-	4SGm16/14	4	5.5	-	11.5		84	81	77	70	60	51	34	9
-	4SGm16/16	4	5.5	-	12.7		96	93	88	80	69	58	39	10
-	4SGm16/18	5.5	7.5	-	16		108	105	99	90	77	65	44	11
-	4SGm16/20	5.5	7.5	-	17.5		120	117	110	100	86	72	49	12
-	4SGm16/22	7.5	10	-	18		133	128	121	109	94	80	54	14
-	4SGm16/24	7.5	10	-	19.6		145	140	132	119	103	87	59	15

Brand
Maximum Flow	22 m3/h (cubic meters per hour)
Maximum Head	454 m (meters)
Maximum Ambient Temperature	Below 40℃
Sand Content (in mass fraction)	Up to 0.01%
Hydrogen Sulfide Content	Up to 1.5 mg/L
Chloride Ion Content:	Up to 400 mg/L
pH Range	6.5 to 8.5
Maximum Depth	70 m below the static water table

(0)

Haven't any account?

Remember Me

Forgot Password?

4SG(m) 4" Deep Well Pump

Performance Range:

Application:

Features:

Series: 4SGm2

Series: 4SGm3

Series: 4SGm4

Series: 4SGm6

Series: 4SGm8

Series: 4SGm10

Series: 4SGm12

Series: 4SGm16

Related Products
