Rain Water Harvesting Filter

Rain Water Harvesting Filter in Bangladesh

Welcome to Green Dot Limited's innovative rainwater harvesting filter system. Our product is designed to efficiently capture and filter rainwater, ensuring optimal quality for various applications. With a commitment to sustainability and environmental stewardship, Green Dot Limited presents a solution that not only conserves water but also enhances its usability.

Description:

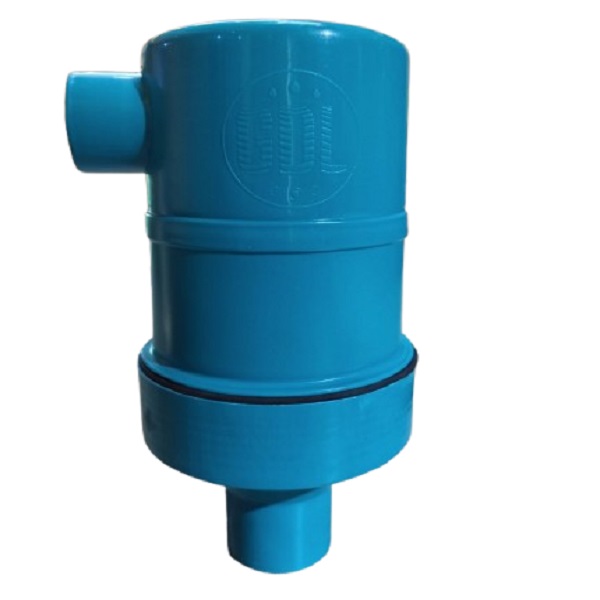

The Green Dot rainwater harvesting filter boasts a generous inside volume of 6 liters, providing ample capacity for collecting rainwater. It comes equipped with two filters to ensure thorough filtration: a micron filter and a net filter. The primary filter features a mesh size of 100, while the secondary filter achieves a filtration level of 5 microns, effectively removing impurities and contaminants from the collected rainwater.

Process:

Collection: Rainwater is collected from rooftops or other surfaces and directed into the filter system through a 2-inch inlet diameter.

Primary Filtration (Mesh Size 100): Upon entering the system, rainwater first encounters the primary filter, which has a mesh size of 100. This filter captures larger particles such as leaves, twigs, and debris, preventing them from entering the storage tank.

Secondary Filtration (5 Microns): After passing through the primary filter, the rainwater moves through the secondary filter, which has a filtration level of 5 microns. This finer filter removes smaller particles and sediment, ensuring the water's cleanliness and quality.

Separation: Throughout the filtration process, any impurities and contaminants present in the rainwater are effectively separated and retained by the filters.

Storage: The filtered rainwater is then stored in the system's inside volume, which has a capacity of 6 liters, ready for use whenever needed.

Outlet: When required, the filtered rainwater can be accessed through the outlet, which has a diameter of 1.5 inches. The flow rate of the filtered water is 5 liters per second with a 2-meter head, providing a steady and sufficient supply for various applications such as irrigation, cleaning, or other non-potable uses.

Benefits:

Water Conservation: By harvesting rainwater, our system helps reduce dependence on traditional water sources, conserving valuable resources.

Improved Water Quality: The dual filtration system ensures that the collected rainwater is free from impurities, making it suitable for a wide range of uses.

Cost Savings: Utilizing rainwater for non-potable purposes can lead to significant savings on water bills, especially in areas where water is scarce or expensive.

Environmental Impact: Reducing the demand for treated water lowers energy consumption and carbon emissions associated with water treatment and distribution.

Versatility: Whether for landscaping, agricultural, or household use, our rainwater harvesting filter provides a sustainable water source for diverse needs.

Why Green Dot Limited:

Green Dot Limited is dedicated to developing eco-friendly solutions that address pressing environmental challenges. Our rainwater harvesting filter exemplifies our commitment to sustainability, innovation, and quality. With a focus on user satisfaction and environmental impact, Green Dot Limited strives to provide reliable products that contribute to a greener, more sustainable future for generations to come.
