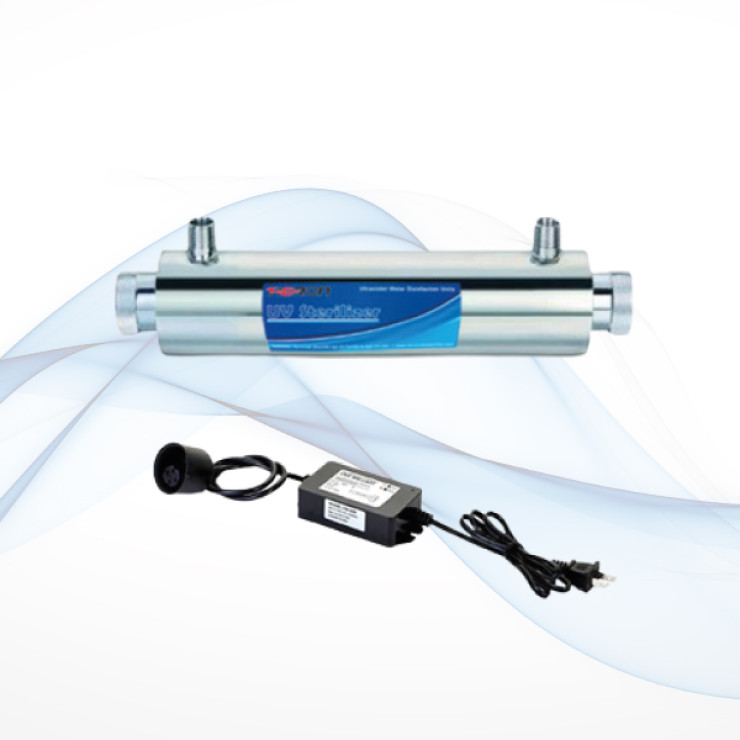

UV Sterilizer

Model No: SS 6W, SS 12W, SS 15W, SS 25W, SS 30W, SS 35W, SS 55W
Features:

Easy, economical, fast, safe, no secondary pollution.

Note:

  • Philips lamps are optional
  • Customization is acceptable
  • 316SS is optional
  • Internal mechanical or electrolytic polishing is optional for stainless steel tube.
Technical Specification:
ModelSS 6WSS 12WSS 15WSS 25WSS 30WSS 35WSS 55W
Housing Material #304/316#304/316#304/316#304/316#304/316#304/316#304/316
All UV lamp(T5) Power6W12W16W25W30W35W55W
Input voltage110V/220V
50/60Hz
110V/220V
50/60Hz
110V/220V
50/60Hz
110V/220V
50/60Hz
110V/220V
50/60Hz
110V/220V
50/60Hz
110V/220V
50/60Hz
UV lamp quantity1111111
Water treatment capacity 0.5GPM
0.1M3/Hr
1GPM
0.2M3/Hr
2GPM
0.4M3/Hr
6GPM
1.4M3/Hr
8GPM
1.8M3/Hr
10GPM
2.3M3/Hr
12GPM
2.7M3/Hr
Water capacity421cm3502cm3990cm31687cm32684cm32810cm32810cm3
Max operating pressure10bar(145psi)10bar(145psi)10bar(145psi)10bar(145psi)10bar(145psi)10bar(145psi)10bar(145psi)
Test pressure15bar(218psi)15bar(218psi)15bar(218psi)15bar(218psi)15bar(218psi)15bar(218psi)15bar(218psi)
Lamp failure alarmOptionalOptionalOptionalOptionalOptionalOptionalOptional
Lamp life8000Hrs8000Hrs8000Hrs8000Hrs8000Hrs8000Hrs8000Hrs
Product sizeA 270 mm310mm375mm595mm910mm950mm950mm
B 63 mm63mm82mm82mm85mm85mm85mm
G 1/4" female1/4" female1/2" male1/2" male3/4" male3/4" male3/4" male
Q 50.8 mm50.8 mm63.5 mm63.5 mm63.5 mm63.5 mm63.5 mm

Applications:

Drinking water,  public places, food processing etc.


Functions:

Stainless steel UV sterilizer is a widely used water disinfection and purification system witch can effectively disinfect bacteria, viruses and molds etc. (better effect after water purifier). The sterilizing  rate is high as 99.99%. The stainless steel meets EU environmental standard, healthy, environmental protecting and no harmful chemical substance include.
